ROUTER RIP Version 2

Langkah-langkah pengkonfigurasian jaringan :

1. Mengganti kabel konektor yang belum sesuai, ganti dan sesuaikan semua kabel konektor sesuai    dengan perangkat yang dihubungkan. Untuk mengganti kabel konektor kita cek terlebih dahulu apakah telah terdapat port yang sesuai dengan port yang dibutuhkan kabel.

2. Kita lakukan pengaturan ulang pada setiap router, yaitu kita lakukan pemberian IP dan pengaturan router dengan router RIP. Router RIP yang kita gunakan adalah router RIP versi2
IP yang kita berikan pada setiap router adlah sebagai berikut :

Sedangkan untuk konfoigurasi router dapat dilihat pada perintah dibawah ini :

Pada Router Chicago 1

Chicago1>en

Chicago1#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Chicago1(config)#int fa 0/0

Chicago1(config-if)#ip add 192.168.10.1 255.255.255.224

Chicago1(config-if)#no shut

Chicago1(config-if)#exit

Chicago1(config)#int s1/1

Chicago1(config-if)#ip add 172.10.16.1 255.255.255.252

Chicago1(config-if)#clock rate 9600

Chicago1(config-if)#no shut

Chicago1(config-if)#exit

Chicago1(config)#

%SYS-5-CONFIG_I: Configured from console by console

Chicago1#

Chicago1#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Chicago1(config)#router rip

Chicago1(config-router)#version

% Incomplete command.

Chicago1(config-router)#version 2

Chicago1(config-router)#no auto

Chicago1(config-router)#no auto-summary

Chicago1(config-router)#network 192.168.10.0

Chicago1(config-router)#network 172.10.16.0

Chicago1(config-router)#no

Chicago1(config-router)#ex

Chicago1(config)#e

Pada Router Chicago

Chicago>en

Chicago#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Chicago(config)#int fa 0/0

Chicago(config-if)#ip add 192.168.20.1 255.255.255.224

Chicago(config-if)#no shut

Chicago(config-if)#exit

Chicago(config)#int s 1/1

Chicago(config-if)#ip add 172.10.16.2 255.255.255.252

Chicago(config-if)#no shut

%LINK-5-CHANGED: Interface Serial1/1, changed state to up

Chicago(config-if)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial1/1, changed state to up

Chicago(config-if)#exit

Chicago(config)#int s 1/0

Chicago(config-if)#ip add 172.16.10.1 255.255.255.252

%DUAL-5-NBRCHANGE: IP-EIGRP 10: Neighbor 10.10.254.250 (Serial1/0) is down: interface downChicago(config-if)#no shut

Chicago(config-if)#exit

Chicago(config)#

Chicago#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Chicago(config)#router rip

Chicago(config-router)#version 2

Chicago(config-router)#no auto

Chicago(config-router)#no auto-summary

Chicago(config-router)#network 192.168.20.0

Chicago(config-router)#network 172.10.16.0

Chicago(config-router)#network 172.16.10.0

Chicago(config-router)#ex

Chicago(config)#

Pada Router Denver

Denver>en

Denver#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Denver(config)#int s1/0

Denver(config-if)#ip add 172.16.10.2 255.255.255.252

Denver(config-if)#clock rate 9600

Denver(config-if)#no shut

Denver(config-if)#exit

Denver(config)#int s1/2

Denver(config-if)#ip add 180.10.10.1 255.255.255.252

Denver(config-if)#clock rate 9600

Denver(config-if)#no shut

%LINK-5-CHANGED: Interface Serial1/2, changed state to up

Denver(config-if)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial1/2, changed state to up

Denver(config-if)#exit

Denver(config)#int s1/1

Denver(config-if)#ip add 200.10.10.1 255.255.255.252

Denver(config-if)#no shut

Denver(config-if)#exit

Denver(config)#int s1/3

Denver(config-if)#ip add 200.10.20.1 255.255.255.252

Denver(config-if)#clock rate 9600

Denver(config-if)#no shut

%LINK-5-CHANGED: Interface Serial1/3, changed state to up

Denver(config-if)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial1/3, changed state to up

Denver(config-if)#exit

Denver(config)#exit

Denver#

Denver#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Denver(config)#router rip

Denver(config-router)#version 2

Denver(config-router)#no au

Denver(config-router)#no auto-summary

Denver(config-router)#network 172.16.10.0

Denver(config-router)#network 180.10.10.0

Denver(config-router)#network 200.10.10.0

Denver(config-router)#network 200.10.20.0

Denver(config-router)#ex

Denver(config)#

Pada Router Dallas

Dallas>en

Dallas#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Dallas(config)#int s0/1

Dallas(config-if)#ip add 200.10.10.2 255.255.255.252

Dallas(config-if)#clock rate 9600

Dallas(config-if)#no shut

Dallas(config-if)#exit

Dallas(config)#int s0/0

Dallas(config-if)#ip add 210.15.20.1 255.255.255.252

Dallas(config-if)#clock rate 9600

Dallas(config-if)#no shut

Dallas(config-if)#exit

Dallas(config)#int fa 0/0

Dallas(config-if)#ip add 192.168.30.1 255.255.255.224

Dallas(config-if)#no shut

Dallas(config-if)#exit

Dallas(config)#exit

Dallas#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Dallas(config)#router rip

Dallas(config-router)#version 2

Dallas(config-router)#no au

Dallas(config-router)#no auto-summary

Dallas(config-router)#network 200.10.10.0

Dallas(config-router)#network 200.15.20.0

Dallas(config-router)#network 192.168.30.0

Dallas(config-router)#ex

Dallas(config)#

Pada Router Denver 1

Denver1>en

Denver1#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Denver1(config)#int s1/2

Denver1(config-if)#ip add 180.10.10.2 255.255.255.252

Denver1(config-if)#no shut

Denver1(config-if)#exit

Denver1(config)#int fa0/0

Denver1(config-if)#ip[ add 192.168.40.1 255.255.255.224

^

% Invalid input detected at ‘^’ marker.

Denver1(config-if)#ip add 192.168.40.1 255.255.255.224

Denver1(config-if)#no shut

Denver1(config-if)#exit

Denver1(config)#

%SYS-5-CONFIG_I: Configured from console by console

Denver1#

Denver1#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Denver1(config)#router rip

Denver1(config-router)#version 2

Denver1(config-router)#no au

Denver1(config-router)#no auto-summary

Denver1(config-router)#network 180.10.10.0

Denver1(config-router)#network 192.168.40.0

Denver1(config-router)#ex

Denver1(config)#

Pada Router Denver 2

Denver2>en

Denver2#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Denver2(config)#int s1/3

Denver2(config-if)#ip add 200.10.20.2 255.255.255.252

Denver2(config-if)#no shut

Denver2(config-if)#exit

Denver2(config)#int fa0/0

Denver2(config-if)#ip add 192.168.50.1

% Incomplete command.

Denver2(config-if)#ip add 192.168.50.1 255.255.255.224

Denver2(config-if)#no shut

Denver2(config-if)#exit

Denver2(config)#exit

Denver2#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Denver2(config)#router rip

Denver2(config-router)#version 2

Denver2(config-router)#no au

Denver2(config-router)#no auto-summary

Denver2(config-router)#network 200.10.20.0

Denver2(config-router)#network 192.168.50.0

Denver2(config-router)#ex

Denver2(config)#

Pada Router Phoenix 1

Phoenix1>en

Phoenix1#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Phoenix1(config)#int s0/0

Phoenix1(config-if)#ip add 210.15.20.2 255.255.255.252

Phoenix1(config-if)#no shut

Phoenix1(config-if)#exit

Phoenix1(config)#int s0/1

Phoenix1(config-if)#ip add 240.20.10.1 255.255.255.252

Not a valid host address – 240.20.10.1

Phoenix1(config-if)#ip add 220.20.10.1 255.255.255.252

Phoenix1(config-if)#clock rate 9600

Phoenix1(config-if)#no shut

%LINK-5-CHANGED: Interface Serial0/1, changed state to down

Phoenix1(config-if)#exit

Phoenix1(config)#int fa 0/0

Phoenix1(config-if)#ip add 192.168.60.1 255.255.255.224

Phoenix1(config-if)#no shut

Phoenix1(config-if)#exit

Phoenix1(config)#exit

Phoenix1#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Phoenix1(config)#router rip

Phoenix1(config-router)#version 2

Phoenix1(config-router)#no au

Phoenix1(config-router)#NO

Phoenix1(config-router)#no

Phoenix1(config-router)#no au

Phoenix1(config-router)#no auto-summary

Phoenix1(config-router)#network 210.15.20.0

Phoenix1(config-router)#network 220.20.10.0

Phoenix1(config-router)#192.168.60.0

^

% Invalid input detected at ‘^’ marker.

Phoenix1(config-router)#network 192.168.60.0

Phoenix1(config-router)#ex

Pada Router Phoenix 2

Phoenix2>en

Phoenix2#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Phoenix2(config)#int 0/1

^

% Invalid input detected at ‘^’ marker.

Phoenix2(config)#int s0/1

Phoenix2(config-if)#ip add 220.20.10.2 255.255.255.252

Phoenix2(config-if)#no shut

%LINK-5-CHANGED: Interface Serial0/1, changed state to up

Phoenix2(config-if)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0/1, changed state to up

Phoenix2(config-if)#xit

^

% Invalid input detected at ‘^’ marker.

Phoenix2(config-if)#exit

Phoenix2(config)#int fa 0/0

Phoenix2(config-if)#ip add 192.168.70.1 255.255.255.224

Phoenix2(config-if)#no shut

Phoenix2(config-if)#exit

Phoenix2(config)#exit

Phoenix2#conf t

Enter configuration commands, one per line.  End with CNTL/Z.

Phoenix2(config)#router rip

Phoenix2(config-router)#version 2

Phoenix2(config-router)#no au

Phoenix2(config-router)#no auto-summary

Phoenix2(config-router)#network 220.20.10.0

Phoenix2(config-router)#network 192.168.70.0

Phoenix2(config-router)#ex

Phoenix2(config)#

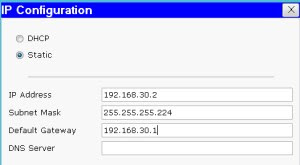

3. Setelah selesai melakukan konfigurasi tahap selanjutnya adalah pemberian IP pada setiap PC

PC-0

PC-1

 PC-2

 PC-3

 PC-4

 PC-5

 PC-6

Setelah selesai maka semuanya dapat saling berkomunikasi
